Rated voltage: 450V / 750V
Working temperature: 500 ℃, 800 ℃

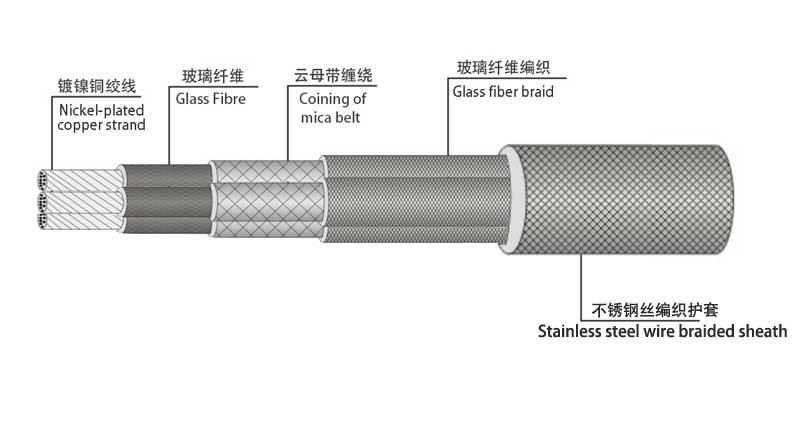

Conductor: bare copper, tinned copper wire, nickel plated copper wire, pure nickel wire stranded
Insulation: glass fiber + mica wrapping + glass fiber weaving
Shield: Copper tinned wire braid
Sheath: glass fiber braiding + gluing
Color: red, yellow, blue, white, black, green, etc
Specification structure technical parameters
标准截面 Standard section mm2 根数/线径 Number/diameter No./mm 最大成缆芯数 Core number in maxmum 耐温 Temperature resisting 0.5 28/0.15 2-19 0.75 24/0.20 2-19 1 32/0.20 2-19 1.5 30/0.25 2-19 2.5 49/0.25 2-19 4 56/0.30 2-19 6 84/0.30 2-19 10 84/0.40 2-19 16 126/0.40 2-19 25 196/0.40 2-5 35 276/0.40 2-5 50 396/0.40 2-5 90 360/0.50 2-5 95 475/0.50 2-5 120 608/0.50 2-5
