Product model: gnb500
Executive standard: Q / irmv2 － 2008
Product characteristics:
1. Rated voltage: 450 / 750V
2. Working temperature: 500 ℃, 800 ℃
3. Conductor: bare copper or nickel plated copper wire stranded

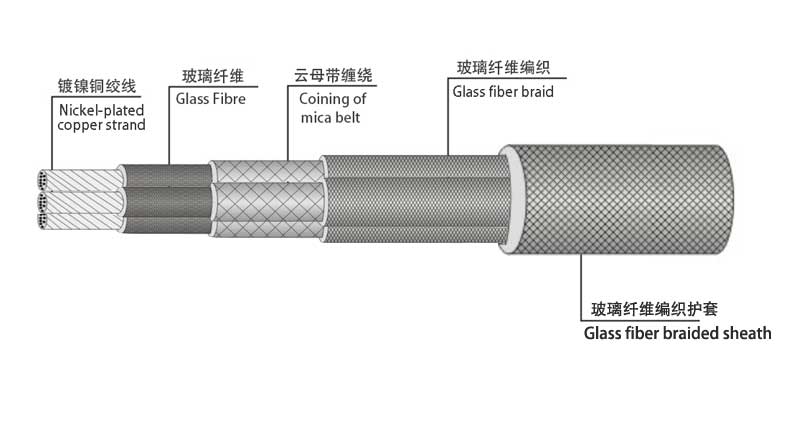

4. Insulation: glass fiber + mica wrapping + glass fiber weaving
5. Sheath: glass fiber braiding + gluing
6. Color: Red / yellow / Blue / White / Black / Brown / green, etc
Specification structure and technical parameters:
|
芯数×截面 |
导体结构 |
绝缘厚度 |
绝缘外径 |
护套厚度 |
平均外径 |
|
|
2 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.20 |
7.80 |
26.7 |
|
3 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.20 |
8.10 |
26.7 |
|
4 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.40 |
9.20 |
26.7 |
|
5 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.50 |
10.0 |
26.7 |
|
6 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.50 |
10.80 |
26.7 |
|
7 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.50 |
10.80 |
26.7 |
|
8 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.50 |
11.50 |
26.7 |
|
10 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.6 |
13.00 |
26.7 |
|
12 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.6 |
13.80 |
26.7 |
|
19 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.8 |
16.2 |
26.7 |
|
2 × 1 |
32/0.20 |
0.60 |
2.60 |
1.40 |
8.60 |
20.0 |
|
3 × 1 |
32/0.20 |
0.60 |
2.60 |
1.40 |
8.80 |
20.0 |
|
4 × 1 |
32/0.20 |
0.60 |
2.60 |
1.50 |
9.40 |
20.0 |
|
5 × 1 |
32/0.20 |
0.60 |
2.60 |
1.50 |
10.40 |
20.0 |
|
6 × 1 |
32/0.20 |
0.60 |
2.60 |
1.60 |
11.50 |
20.0 |
|
7 × 1 |
32/0.20 |
0.60 |
2.60 |
1.60 |
11.50 |
20.0 |
|
8 × 1 |
32/0.20 |
0.60 |
2.60 |
1.60 |
12.40 |
20.0 |
|
10 × 1 |
32/0.20 |
0.60 |
2.60 |
1.80 |
13.80 |
20.0 |
|
12 × 1 |
32/0.20 |
0.60 |
2.60 |
1.80 |
10.50 |
20.0 |
|
16 × 1 |
32/0.20 |
0.60 |
2.60 |
1.80 |
16.0 |
20.0 |
|
19 × 1 |
32/0.20 |
0.60 |
2.60 |
1.80 |
17.2 |
20.0 |
|
2 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.50 |
9.20 |
13.7 |
|
3 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.50 |
9.50 |
13.7 |
|
4 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.50 |
10.20 |
13.7 |
|
5 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.60 |
11.40 |
13.7 |
|
6 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.60 |
12.20 |
13.7 |
|
7 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.60 |
12.20 |
13.7 |
|
8 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.60 |
13.0 |
13.7 |
|
10 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.80 |
15.0 |
13.7 |
|
2× 2.5 |
49/0.25 |
0.70 |
3.50 |
1.60 |
10.80 |
8.21 |
|
3× 2.5 |
49/0.25 |
0.70 |
3.50 |
1.60 |
11.20 |
8.21 |
|
4× 2.5 |
49/0.25 |
0.70 |
3.50 |
1.80 |
12.60 |
8.21 |
|
5× 2.5 |
49/0.25 |
0.70 |
3.50 |
1.80 |
13.60 |
8.21 |
|
6× 2.5 |
49/0.25 |
0.70 |
3.50 |
1.80 |
14.60 |
8.21 |
|
7× 2.5 |
49/0.25 |
0.70 |
3.50 |
1.80 |
14.60 |
8.21 |
|
2× 4 |
56/0.30 |
0.70 |
4.10 |
1.60 |
12.0 |
5.09 |
|
3× 4 |
56/0.30 |
0.70 |
4.10 |
1.70 |
9.8 |
5.09 |
|
4× 4 |
56/0.30 |
0.70 |
4.10 |
1.80 |
14.0 |
5.09 |
|
2× 6 |
84/0.30 |
0.70 |
4.90 |
1.60 |
13.8 |
3.39 |
|
3× 6 |
84/0.30 |
0.70 |
4.90 |
1.80 |
14.8 |
3.39 |
|
4× 6 |
84/0.30 |
0.70 |
4.90 |
1.80 |
16.0 |
3.39 |
