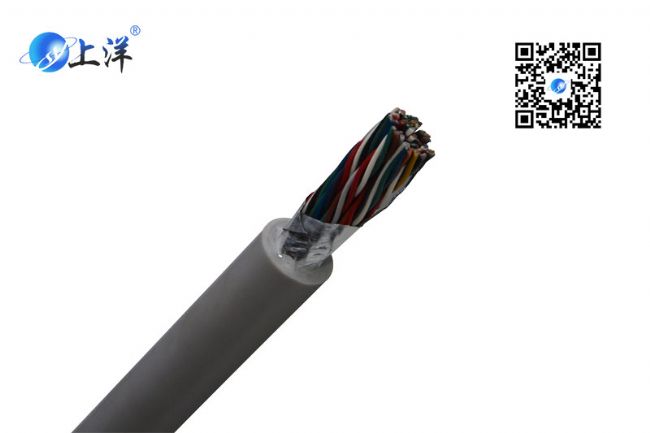

氟塑料绝缘硅橡胶护套高温电缆200℃ FYGC

Home > Products >
氟塑料绝缘硅橡胶护套高温电缆200℃ FYGC

Executive standard: Q / irmv3 － 2008


Product characteristics:


1. Rated voltage: 450V / 750V


2. Working temperature: - 60 ~ + 200 ℃

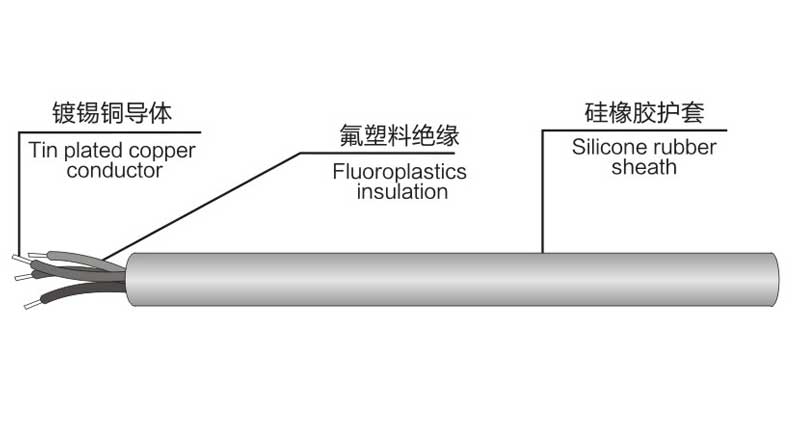

3. Conductor: bare copper conductor or stranded tinned copper wire


4. Insulation: FEP fluoroplastic


5. Sheath: silicone rubber


6. Color: Red / yellow / Blue / White / Black / Brown / green, etc


Features / uses:


When used in a long-term humid environment, it has excellent electrical performance, waterproof and mold resistance. Excellent bending performance, the minimum bending radius is 16 times of the outer diameter of the cable, and it can be moved.


It is used in various mobile motors with AC rated voltage of 450 / 750V and below, steel, aviation, power plant, petrochemical and other high-temperature environments.


Delivery requirements:


According to the contract agreement of both parties, short delivery of no less than 10m is allowed. The quantity shall not exceed 10% of the total delivery length.


Specification structure and technical parameters:

芯数×截面

（mm2）

导体结构

根数/线径（mm）

绝缘厚度

（mm）

绝缘外径

（ mm ）

护套厚度

（ mm ）

平均外径

（ mm ）

20 ℃时导体直流电阻

（ Ω /km ）

2 × 0.08

7/0.12

0.20

0.78

0.80

2.40

245

3 × 0.08

7/0.12

0.20

0.78

1.0

3.80

245

4 × 0.08

7/0.12

0.20

0.78

1.0

4.00

245

5 × 0.08

7/0.12

0.20

0.78

1.20

4.50

245

6 × 0.08

7/0.12

0.20

0.78

1.40

5.20

245

7 × 0.08

7/0.12

0.20

0.78

1.40

5.20

245

2 × 0.12

7/0.15

0.25

0.95

0.90

3.80

163

3 × 0.12

7/0.15

0.25

0.95

1.0

4.10

163

4 × 0.12

7/0.15

0.25

0.95

1.0

4.30

163

5 × 0.12

7/0.15

0.25

0.95

1.20

5.0

163

6 × 0.12

7/0.15

0.25

0.95

1.20

5.20

163

7 × 0.12

7/0.15

0.25

0.95

1.20

5.20

163

8 × 0.2

7/0.15

0.25

0.95

1.20

5.60

163

10 × 0.12

7/0.15

0.25

0.95

1.30

6.40

163

12 × 0.12

7/0.15

0.25

0.95

1.30

6.80

163

19 × 0.12

7/0.15

0.25

0.95

1.30

7.40

163

2 × 0.2

7/.20

0.25

1.10

1.20

4.60

90.4

3 × 0.2

19/0.12

0.25

1.10

1.30

5.0

90.4

3 × 0.2

7/0.20

0.25

1.10

1.50

5.50

90.4

4 × 0.2

7/0.20

0.25

1.10

1.20

5.0

90.4

5 × 0.2

7/0.20

0.25

1.10

1.20

5.40

90.4

5 × 0.2

19/0.12

0.25

1.10

1.50

6.0

90.4

6 × 0.2

7/0.20

0.25

1.10

1.2

5.80

90.4

7 × 0.2

7/0.20

0.25

1.10

1.2

5.80

90.4

8 × 0.2

7/0.20

0.25

1.10

1.20

6.0

90.4

10 × 0.2

7/0.20

0.25

1.10

1.20

6.80

90.4

12 × 0.2

7/0.20

0.25

1.10

1.40

7.50

90.4

19 × 0.2

7/0.20

0.25

1.10

1.40

8.20

90.4

2 × 0.35

19/0.16

0.25

1.30

0.80

4.20

53.1

3 × 0.35

19/0.16

0.25

1.30

1.10

5.0

53.1

4 × 0.35

19/0.16

0.25

1.30

1.20

5.50

53.1

5 × 0.35

19/0.16

0.25

1.30

1.30

6.20

53.1

6 × 0.35

19/0.16

0.25

1.30

1.40

6.80

53.1

7 × 0.35

19/0.16

0.25

1.30

1.40

6.80

53.1

8 × 0.35

19/0.16

0.25

1.30

1.40

7.0

53.1

9 × 0.35

19/0.16

0.25

1.30

1.50

7.80

53.1

10 × 0.35

19/0.16

0.25

1.30

1.50

8.20

53.1

12 × 0.35

19/0.16

0.25

1.30

1.50

8.40

53.1

14 × 0.35

19/0.16

0.25

1.30

1.50

8.80

53.1

19 × 0.35

19/0.16

0.25

1.30

1.50

9.50

53.1

2 × 0.5

19/0.18

0.25

1.40

1.20

5.20

40.1

3 × 0.5

19/0.18

0.25

1.40

1.20

5.50

40.1

4 × 0.5

19/0.18

0.25

1.40

1.40

6.20

40.1

5 × 0.5

19/0.18

0.25

1.40

1.40

6.60

40.1

6 × 0.5

19/0.18

0.25

1.40

1.40

7.0

40.1

7 × 0.5

19/0.18

0.25

1.40

1.40

7.0

40.1

8 × 0.5

19/0.18

0.25

1.40

1.40

7.40

40.1

9 × 0.5

19/0.18

0.25

1.40

1.40

8.0

40.1

10 × 0.5

19/0.18

0.25

1.40

1.50

8.60

40.1

12 × 0.5

19/0.18

0.25

1.40

1.50

8.80

40.1

14 × 0.5

19/0.18

0.25

1.40

1.50

9.20

40.1

17 × 0.5

19/0.18

0.25

1.40

1.60

10.2

40.1

19 × 0.5

19/0.18

0.25

1.40

1.60

10.2

40.1

2 × 0.75

19/0.23

0.25

1.70

1.10

5.60

24.60

3 × 0.75

19/0.23

0.25

1.70

1.40

6.50

24.60

4 × 0.75

19/0.23

0.25

1.70

1.50

7.20

24.60

5 × 0.75

19/0.23

0.25

1.70

1.50

7.60

24.60

6 × 0.75

19/0.23

0.25

1.70

1.50

8.10

24.60

7 × 0.75

19/0.23

0.25

1.70

1.50

8.10

24.60

8 × 0.75

19/0.23

0.25

1.70

1.50

8.60

24.60

10 × 0.75

19/0.23

0.25

1.70

1.60

10.0

24.60

12 × 0.75

19/0.23

0.25

1.70

1.60

10.30

24.60

14 × 0.75

19/0.23

0.25

1.70

1.60

10.80

24.60

19 × 0.75

19/0.23

0.25

1.70

1.80

12.10

24.60

2 × 1

19/0.26

0.25

1.80

1.20

6.0

20.4

3 × 1

19/0.26

0.25

1.80

1.20

6.20

20.4

4 × 1

19/0.26

0.25

1.80

1.20

6.80

20.4

5 × 1

19/0.26

0.25

1.80

1.40

7.60

20.4

6 × 1

19/0.26

0.25

1.80

1.40

8.20

20.4

7 × 1

19/0.26

0.25

1.80

1.40

8.20

20.4

8 × 1

19/0.26

0.25

1.80

1.40

8.60

20.4

10 × 1

19/0.26

0.25

1.80

1.60

10.40

20.4

12 × 1

19/0.26

0.25

1.80

1.60

10.80

20.4

14 × 1

19/0.26

0.25

1.80

1.60

11.20

20.4

19 × 1

19/0.26

0.25

1.80

1.80

12.60

20.4

2 × 1.5

19/0.32

0.30

2.25

1.0

6.50

12.7

3 × 1.5

19/0.32

0.30

2.25

1.40

7.60

12.7

4 × 1.5

19/0.32

0.30

2.25

1.40

8.20

12.70

5 × 1.5

19/0.32

0.30

2.25

1.50

9.10

12.70

6 × 1.5

19/0.32

0.30

2.25

1.50

9.80

12.70

7 × 1.5

19/0.32

0.30

2.25

1.50

9.80

12.70

8 × 1.5

19/0.32

0.30

2.25

1.60

10.60

12.70

10 × 1.5

19/0.32

0.30

2.25

1.60

12.20

12.70

12 × 1.5

19/0.32

0.30

2.25

1.80

13.0

12.7

14 × 1.5

19/0.32

0.30

2.25

1.80

13.60

12.70

19 × 1.5

19/0.32

0.30

2.25

1.80

14.90

12.70

2 × 2.5

19/0.41

0.40

2.80

1.40

8.40

7.43

3 × 2.5

19/0.41

0.40

2.80

1.40

8.80

7.43

4 × 2.5

19/0.41

0.40

2.80

1.50

9.80

7.43

5 × 2.5

19/0.41

0.40

2.80

1.50

10.60

7.43

6 × 2.5

19/0.41

0.40

2.80

1.60

11.6

7.43

7 × 2.5

19/0.41

0.40

2.80

1.60

11.6

7.43

8 × 2.5

19/0.41

0.40

2.80

1.80

12.80

7.43

10 × 2.5

19/0.41

0.40

2.80

1.80

14.80

7.43

12 × 2.5

19/0.41

0.40

2.80

1.80

15.20

7.43

14 × 2.5

19/0.41

0.40

2.80

2.0

16.40

7.43

19 × 2.5

19/0.41

0.40

2.80

2.0

18.0

7.43
