Working temperature: + 90 ℃
Rated voltage: 6kV 10KV

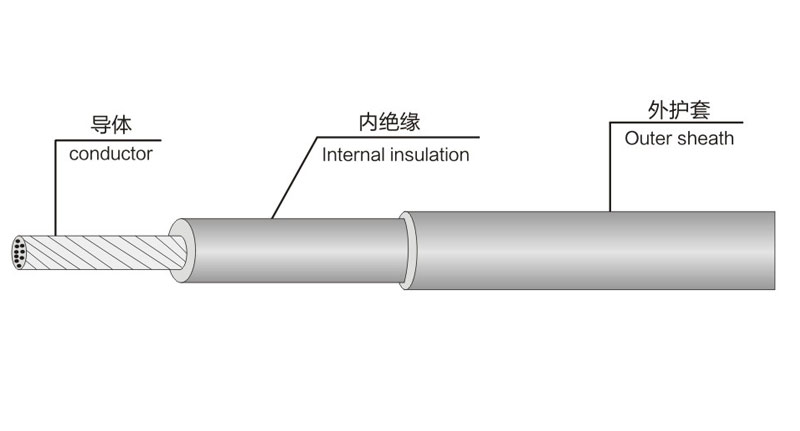

Conductor: tinned copper wire stranded
Insulator: ethylene propylene rubber insulation, Chloroether sheath or ethylene propylene rubber sheath
Color: inner white + outer black
According to the agreement of both parties, any length of delivery is allowed
Features and application: used for connection of high-voltage motor lead-in wire and high-voltage switch cabinet connection wire
Wire specification
| 型号 | 标准截面（mm2） | 根数/线径 | 绝缘厚度（mm） | 护套厚度（mm） | 绝缘厚度（mm） | 护套厚度（mm） | 完成外径（mm） | |
| 6KV | 6KV | 10KV | 10KV | 6KV | 10KV | |||
| JFEYH | 6 | 84/0.30 | 3.5 | 1.8 | 5.0 | 1.80 | 14.00 | 17.00 |
| 10 | 84/0.40 | 3.5 | 1.8 | 5.0 | 1.80 | 15.10 | 18.10 | |
| 16 | 126/0.40 | 3.5 | 1.8 | 5.0 | 1.80 | 16.20 | 19.20 | |
| 25 | 196/0.40 | 3.5 | 2.0 | 5.0 | 2.0 | 18.00 | 21.00 | |
| 35 | 276/0.40 | 3.5 | 2.0 | 5.0 | 2.0 | 19.20 | 22.20 | |
| 50 | 396/0.40 | 3.5 | 2.0 | 5.0 | 2.0 | 21.30 | 24.30 | |
| 70 | 360/0.50 | 3.5 | 2.5 | 5.0 | 2.5 | 24.00 | 27.00 | |
| 95 | 475/0.50 | 3.5 | 2.5 | 5.0 | 2.5 | 26.00 | 29.00 | |
| 120 | 608/0.50 | 3.5 | 2.5 | 5.0 | 2.5 | 28.30 | 31.30 | |
| 150 | 756/0.50 | 3.5 | 2.5 | 5.0 | 2.5 | 29.80 | 33.00 | |
| 185 | 925/0.50 | 4.0 | 2.8 | 5.5 | 2.8 | 33.60 | 36.60 | |
| 240 | 1221/0.50 | 4.0 | 2.8 | 5.5 | 2.8 | 36.70 | 39.70 | |
