Product model: ygcp

Executive standard: Q / irmv2 － 2008

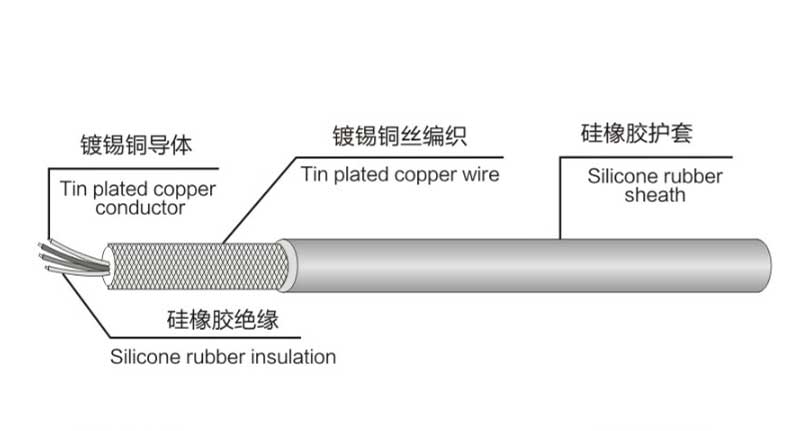

Product characteristics:

1. Rated voltage: 450 / 750V

2. Working temperature: - 60 ~ + 200 ℃

3. Conductor: stranded tinned copper wire

4. Insulation: silicone rubber

5. Tinned copper wire shield

6. Sheath: silicone rubber

7. Color: Red / yellow / Blue / White / Black / Brown / green, etc

Features / uses:

It can be used in long-term humid environment, with excellent electrical performance, waterproof and mold resistance. Excellent bending performance, the minimum bending radius is 16 times of the outer diameter of the cable, and it can be moved. It is used in various mobile motors with AC rated voltage of 450 / 750V and below, steel, aviation, power plant, petrochemical and other high-temperature environments.

Delivery requirements:

According to the contract agreement of both parties, short delivery of no less than 10m is allowed. The quantity shall not exceed 10% of the total delivery length.

Specification structure and technical parameters:

横截面积 （mm2）	导体结构 根数/线径（mm）	绝缘厚度 （mm）	芯数	20 ℃时导体 直流电阻 （Ω/km）	包装长度 （m）
4	56 × 0.30	1.0	2-19	5.09	100
6	84 × 0.30	1.0	2-10	3.39	100
10	84 × 0.40	1.2		1.82	100
16	126 × 0.40	1.2	2-5	1.22	100
25	196 × 0.40	1.4		0.795	100
35	276 × 0.40	1.4		0.565	100
50	396 × 0.40	1.6		0.393	100
70	360 × 0.50	1.6		0.227	100
95	475 × 0.50	1.8		0.210	100
120	608 × 0.50	1.8		0.164	100
150	756 × 0.50	2.0		0.132	100
185	925 × 0.50	2.2		0.108	100
240	1221 × 0.50	2.4		0.0817	100
