Executive standard: Q / irmv2 － 2008
Product characteristics:
1. Rated voltage: 450 / 750V
2. Working temperature: - 60 ~ + 200 ℃

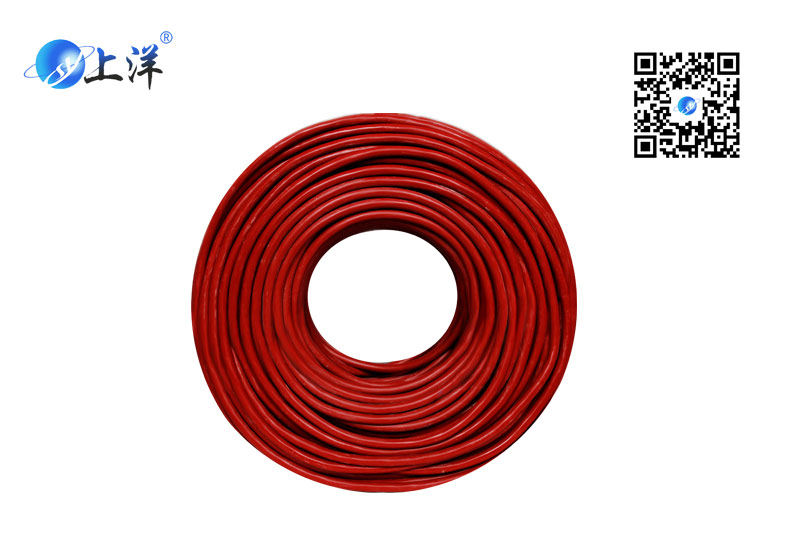

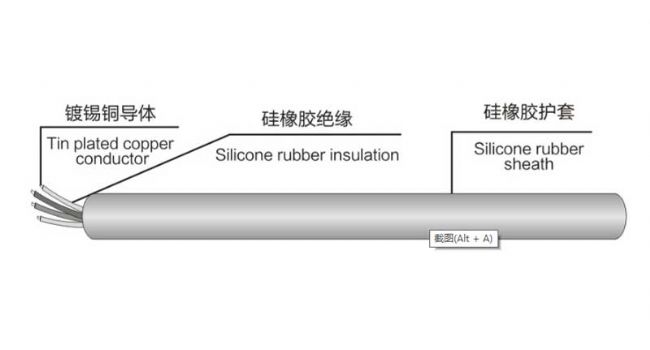

3. Conductor: stranded tinned copper wire
4. Insulation: silicone rubber
5. Sheath: silicone rubber
6. Color: Red / yellow / Blue / White / Black / yellow green / Brown / green, etc
Features / uses:
It can be used in long-term humid environment, with excellent electrical performance, waterproof and mold resistance. Excellent bending performance, the minimum bending radius is 16 times of the outer diameter of the cable, and it can be moved. It is used in various mobile motors with AC rated voltage of 450 / 750V and below, steel, aviation, power plant, petrochemical and other high-temperature environments.
Delivery requirements:
According to the contract agreement of both parties, short delivery of no less than 10m is allowed. The quantity shall not exceed 10% of the total delivery length.
Specification structure and technical parameters:
Technical parameters of YGC products (1)
芯数×截面 （mm2） | 导体结构 根数/线径（mm） | 绝缘厚度（mm） | 完成外径（mm） | 护套厚度 （mm） | 平均外径 （mm） | （Ω /KM ） |
2 × 4 | 56/0.30 | 0.70 | 4.10 | 1.40 | 11.0 | 5.09 |
3 × 4 | 56/0.30 | 0.70 | 4.10 | 1.60 | 12.0 | 5.09 |
4 × 4 | 56/0.30 | 0.70 | 4.10 | 1.80 | 13.5 | 5.09 |
5 × 4 | 56/0.30 | 0.70 | 4.10 | 1.80 | 14.6 | 5.09 |
6 × 4 | 56/0.30 | 0.70 | 4.10 | 1.80 | 16.0 | 5.09 |
7 × 4 | 56/0.30 | 0.70 | 4.10 | 1.80 | 16.0 | 5.09 |
10 × 4 | 56/0.30 | 0.70 | 4.10 | 2.20 | 20.0 | 5.09 |
12 × 4 | 56/0.30 | 0.70 | 4.10 | 2.40 | 22.0 | 5.09 |
2 × 6 | 84/0.30 | 0.70 | 4.90 | 1.60 | 13.0 | 3.39 |
3 × 6 | 84/0.30 | 0.70 | 4.90 | 1.60 | 13.8 | 3.39 |
4 × 6 | 84/0.30 | 0.70 | 4.90 | 1.80 | 15.4 | 3.39 |
5 × 6 | 84/0.30 | 0.70 | 4.90 | 1.80 | 16.8 | 3.39 |
6 × 6 | 84/0.30 | 0.70 | 4.90 | 2.00 | 18.8 | 3.39 |
7 × 6 | 84/0.30 | 0.70 | 4.90 | 2.00 | 18.8 | 3.39 |
10 × 6 | 84/0.30 | 0.70 | 4.90 | 2.20 | 23.4 | 3.39 |
2 × 10 | 84/0.40 | 1.0 | 6.60 | 1.80 | 17.0 | 1.95 |
3 × 10 | 84/0.40 | 1.0 | 6.60 | 1.80 | 18.0 | 1.95 |
4 × 10 | 84/0.40 | 1.0 | 6.60 | 2.00 | 20.0 | 1.95 |
5 × 10 | 84/0.40 | 1.0 | 6.60 | 2.40 | 22.8 | 1.95 |
2 × 16 | 126/0.40 | 1.2 | 8.40 | 2.50 | 21.8 | 1.24 |
3 × 16 | 126/0.40 | 1.2 | 8.40 | 2.60 | 23.2 | 1.24 |
4 × 16 | 126/0.40 | 1.2 | 8.40 | 2.60 | 25.6 | 1.24 |
5 × 16 | 126/0.40 | 1.2 | 8.40 | 2.80 | 28.2 | 1.24 |
2 × 25 | 196/0.40 | 1.30 | 10.10 | 2.6 | 25.4 | 0.795 |
3 × 25 | 196/0.40 | 1.30 | 10.10 | 2.6 | 27.0 | 0.795 |
4 × 25 | 196/0.40 | 1.30 | 10.10 | 2.6 | 29.6 | 0.795 |
5 × 25 | 196/0.40 | 1.30 | 10.10 | 2.6 | 32.80 | 0.795 |
2 × 35 | 494/0.30 | 1.4 | 11.5 | 2.4 | 28.0 | 0.565 |
3 × 35 | 494/0.30 | 1.4 | 11.5 | 2.6 | 30.0 | 0.565 |
4 × 35 | 494/0.30 | 1.4 | 11.5 | 2.6 | 33.0 | 0.565 |
3*50 | 396/0.40 | 1.6 | 14.0 | 2.8 | 36.0 | 0.393 |
4 × 50 | 396/0.40 | 1.6 | 14.0 | 2.8 | 39.6 | 0.393 |
3 × 70 | 551/0.40 | 1.6 | 15.6 | 3.0 | 10.0 | 0.277 |
3 × 95 | 760/0.40 | 1.8 | 18.2 | 3.2 | 45.8 | 0.210 |
3 × 120 | 608/0.50 | 2.0 | 20.0 | 3.6 | 50.6 | 0.164 |
3 × 150 | 760/0.50 | 2.2 | 22.4 | 3.8 | 56.2 | 0.132 |
3 × 185 | 925/0.50 | 2.4 | 24.8 | 4.0 | 61.8 | 0.108 |
3 × 240 | 1221/0.50 | 2.6 | 28.2 | 4.2 | 69.4 | 0.082 |
YGC产品技术参数（2）
芯数×截面 | 导体结构 | 主线芯外径 | 地线芯外径 | 护套厚度 | 平均外径 | |
3×1.5+1×1 | 48/0.20 | 32/0.20 | 2.80 | 2.60 | 1.4 | 9.50 |
3×2+1×1.5 | 40/0.25 | 48/0.20 | 3.20 | 2.80 | 1.50 | 10.70 |
3×2.5+1×1.5 | 49/0.25 | 48/0.20 | 3.50 | 2.80 | 1.7 | 12.0 |
3×4+1×2.5 | 56/0.30 | 49/0.25 | 4.10 | 3.50 | 1.8 | 13.5 |
3×6+1×4 | 84/0.30 | 56/0.30 | 4.90 | 4.10 | 1.8 | 15.4 |
3×10+1×6 | 84/0.40 | 84/0.30 | 6.60 | 4.90 | 1.80 | 19.5 |
3×16+1×10 | 126/0.40 | 84/0.40 | 8.40 | 6.60 | 2.60 | 24.6 |
3×25+1×16 | 196/0.40 | 126/0.40 | 10.10 | 8.40 | 2.60 | 28.60 |
3×35+1×25 | 494/0.30 | 196/0.40 | 11.50 | 10.10 | 2.60 | 32.20 |
3×50+1×35 | 396/0.40 | 194/0.30 | 14.0 | 10.10 | 2.80 | 37.80 |
3×70+1×50 | 551/0.40 | 396/0.40 | 15.6 | 11.5 | 3.0 | 42.2 |
3×95+1×50 | 760/0.40 | 396/0.40 | 18.2 | 14.0 | 3.2 | 48.5 |
3×120+1×70 | 608/0.50 | 551/0.40 | 20.0 | 15.6 | 3.6 | 53.6 |
3×150+1×70 | 760/0.50 | 551/0.40 | 22.4 | 15.6 | 3.8 | 58.3 |
3×150+1×95 | 760/0.50 | 760/0.40 | 22.4 | 18.2 | 3.80 | 60.0 |
3×185+1×70 | 925/0.50 | 551/0.40 | 24.8 | 15.6 | 4.0 | 64.2 |
3×185+1×95 | 925/0.50 | 760/0.40 | 24.8 | 18.2 | 4.2 | 65.8 |
3×240+1×95 | 1221/0.50 | 475/0.50 | 28.2 | 18.2 | 4.5 | 72.8 |
3×240+1×120 | 1221/0.50 | 608/0.50 | 28.2 | 20.0 | 4.5 | 75.0 |
