氟塑料绝缘高温电缆200℃ 250℃ AFPF

Home > Products >
氟塑料绝缘高温电缆200℃ 250℃ AFPF
Executive standard: Q / irmv1-2008
Rated voltage: 600V
Working temperature: - 60 ~ + 200 ℃ / 250 ℃

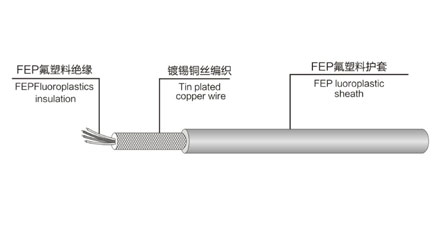

Conductor: stranded tinned or silver plated copper wire
Insulation: FEP (200 ℃) or PTFE (250 ℃) fluoroplastic
Sheath: FEP (200 ℃) or PTFE (250 ℃) fluoroplastic
Color: red, yellow, blue, white, black, brown, green, etc.
Product performance: it has excellent corrosion resistance, oil resistance, strong acid, strong alkali, strong oxidant, etc. it has excellent electrical insulation performance, high voltage resistance, low high frequency loss, no moisture absorption, and large insulation resistance; It has excellent fire and aging resistance and long service life.
Delivery length: short line sections not less than 10m are allowed, but the quantity shall not exceed 10% of the total delivery quantity.

Specification, structure and technical parameters

芯数×截面

（mm2）

导体结构

根数/线径（mm）

绝缘

护套

20℃时导体直流电阻（Ω/km）

厚度

外径

厚度

外径

1×0.12

7/0.15

0.20

0.85

0.20

1.70

150

1×0.2

7/0.20

0.20

1.0

0.20

1.90

83.5

1×0.35

19/0.16

0.25

1.30

0.25

2.20

49.5

1×0.5

19/0.18

0.25

1.40

0.25

2.40

36.0

1×0.75

19/0.23

0.25

1.70

0.25

2.70

22.7

1×1.0

19/0.26

0.25

1.80

0.25

2.80

19.0

2×0.12

7/0.15

0.20

0.85

0.25

2.70

150

3×0.12

7/0.15

0.20

0.85

0.25

2.70

150

4×0.12

7/0.15

0.20

0.85

0.25

3.0

150

5×0.12

7/0.15

0.20

0.85

0.30

3.30

150

6×0.12

7/0.15

0.20

0.85

0.30

3.60

150

7×0.12

7/0.15

0.20

0.85

0.30

3.60

150

8×0.12

7/0.20

0.20

0.85

0.30

3.90

150

19×0.12

7/0.20

0.20

0.85

0.35

5.50

150

2×0.2

7/0.20

0.20

1.0

0.25

2.90

83.5

3×0.2

7/0.20

0.20

1.0

0.25

3.00

83.5

4×0.2

7/0.20

0.20

1.0

0.30

3.50

83.5

5×0.2

7/0.20

0.20

1.0

0.30

3.80

83.5

6×0.2

7/0.20

0.20

1.0

0.30

4.20

83.5

7×0.2

7/0.20

0.20

1.0

0.30

4.20

83.5

8×0.2

19/0.16

0.25

1.0

0.35

4.50

83.5

19×0.2

19/0.16

0.25

1.0

0.40

6.40

83.5

2×0.35

19/0.16

0.25

1.30

0.25

3.50

49.5

3×0.35

19/0.16

0.25

1.30

0.25

3.60

49.5

4×0.35

19/0.16

0.25

1.30

0.30

4.25

49.5

5×0.35

19/0.16

0.25

1.30

0.35

4.25

49.5

6×0.35

19/0.16

0.25

1.30

0.35

4.70

49.5

7×0.35

19/0.16

0.25

1.30

0.35

5.00

49.5

19×0.35

19/0.16

0.25

1.30

0.50

8.0

49.5

2×0.5

19/0.18

0.25

1.40

0.25

3.80

36.0

3×0.5

19/0.18

0.25

1.40

0.25

3.90

36.0

4×0.5

19/0.18

0.25

1.40

0.30

4.60

36.0

5×0.5

19/0.18

0.25

1.40

0.35

5.0

36.0

6×0.5

19/0.18

0.25

1.40

0.35

5.40

36.0

7×0.5

19/0.18

0.25

1.40

0.35

5.40

36.0

8×0.5

19/0.18

0.25

1.40

0.35

5.90

36.0

19×0.5

19/0.18

0.25

1.40

0.50

8.50

36.0

2×0.75

19/0.23

0.25

1.70

0.30

4.60

22.7

3×0.75

19/0.23

0.25

1.70

0.40

4.80

22.7

4×0.75

19/0.23

0.25

1.70

0.40

5.50

22.7

5×0.75

19/0.23

0.25

1.70

0.40

6.0

22.7

6×0.75

19/0.23

0.25

1.70

0.40

6.40

22.7

7×0.75

19/0.23

0.25

1.70

0.40

6.40

22.7

19×0.75

19/0.23

0.25

1.70

0.60

10.20

22.7

2×1

19/0.26

0.25

1.80

0.30

4.70

19

3×1

19/0.26

0.25

1.80

0.35

4.80

19

4×1

19/0.26

0.25

1.80

0.40

5.60

19

5×1

19/0.26

0.25

1.80

0.40

6.20

19

6×1

19/0.26

0.25

1.80

0.40

6.80

19

7×1

19/0.26

0.25

1.80

0.40

6.80

19

19×1

19/0.26

0.25

1.80

0.60

10.80

19

2×1.5

19/0.32

0.30

2.25

0.40

5.80

11.7

3×1.5

19/0.32

0.30

2.25

0.40

6.0

11.7

4×1.5

19/0.32

0.30

2.25

0.40

6.80

11.7

5×1.5

19/0.32

0.30

2.25

0.40

7.50

11.7

6×1.5

19/0.32

0.30

2.25

0.50

8.40

11.7

7×1.5

19/0.32

0.30

2.25

0.50

8.40

11.7

19×1.5

19/0.32

0.30

2.25

0.70

13.20

11.7

2×2.5

19/0.41

0.40

2.80

0.40

7.0

6.86

3×2.5

19/0.41

0.40

2.80

0.40

7.20

6.86

4×2.5

19/0.41

0.40

2.80

0.40

8.20

6.86

5×2.5

19/0.41

0.40

2.80

0.50

9.20

6.86

6×2.5

19/0.41

0.40

2.80

0.50

10.0

6.86

7×2.5

19/0.41

0.40

2.80

0.50

10.0

6.86
