Rated voltage: 450 / 750V

Working temperature: - 60 ~ + 105 ℃

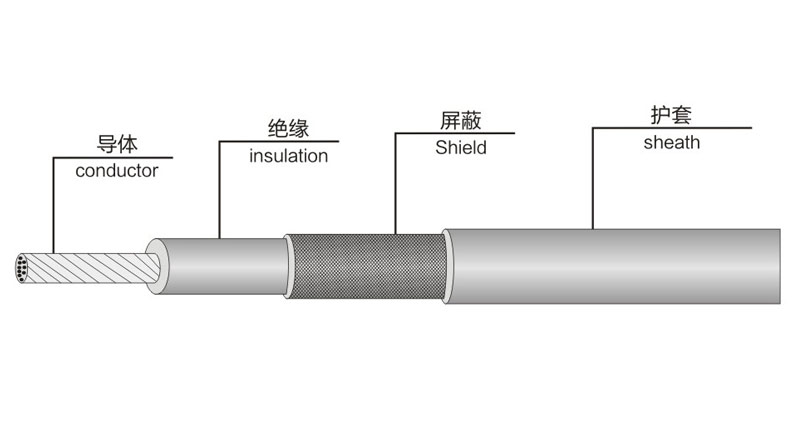

Conductor: tinned copper wire stranded

Insulation: Teflon FEP

Sheath: elastic flame retardant polyethylene sheath

Color: red, yellow, blue, white, black, brown, green, etc.

Product performance: it is wear-resistant, waterproof, cold resistant, oil resistant, not easy to burn, not easy to aging, environmental friendly, and can be used normally in the environment of 98% relative humidity.

Usage: widely used for the installation of monitoring equipment and lines in laboratories and highways, as well as for the wiring of lighting fixtures and high pole lamps on roads.

Product technical parameters

标称截面	导体结构	绝缘平均厚度	护套平均厚度	芯数	电线平均外径	20℃时导体电阻最大值
（mm2）	根数/直径（mm）	（mm）	（mm）		屏蔽型	（Ω/km）
0.12	7/0.15	0.20	0.7	3	3.5	锡149/银128
	7/0.15	0.20	0.7	4	3.8
	7/0.15	0.20	0.7	5	4.0
	7/0.15	0.20	0.7	6	4.2
	7/0.15	0.20	0.7	7	4.5
	7/0.15	0.20	0.7	8	4.6
0.20	7/0.20	0.20	0.7	4	4.1	锡90.4/银83.5
	7/0.20	0.20	0.7	5	4.4
	7/0.20	0.20	0.7	6	4.7
	7/0.20	0.20	0.7	7	4.9
0.35	19/0.16	0.23	0.8	3	4.5	锡50.8银46.9
	19/0.16	0.23	0.8	4	4.9
	19/0.16	0.23	0.8	5	5.2
	19/0.16	0.23	0.8	6	5.6
	19/0.16	0.23	0.8	7	5.8
0.50	19/0.18	0.25	0.85	3	4.8	锡32.5/银30.1
	19/0.18	0.25	0.85	4	5.2
	19/0.18	0.25	0.85	5	5.6
	19/0.18	0.25	0.85	6	6.2
	19/0.18	0.25	0.85	7	6.5
