聚氯乙烯绝缘电线 UL2464

Standard: ul7581581

Rated voltage: 300V, rated temperature: 80 ℃

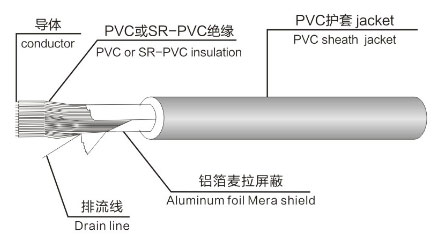

The conductor shall be stranded bare copper or tinned wire

PVC or semi-rigid PVC insulation

Aluminum foil Mylar tape shielding

Stranded tinned or bare copper wire drain line

Tinned or bare soft copper wire braided shield

PVC sheath

It can pass UL vw-1sc and CSA FT1 vertical fire resistance test

Application:

It is applicable to the computer wires conforming to the International Electrotechnical specification (EIA) RS-232 and CAD / CAM

导体 CONDUCTOR				绝缘 INSULATION		屏蔽 SHIELD		护套 JACKET		最大导体电阻 MAX Resistance At20℃	最小绝缘电阻 Min Insulation Resistance At20℃	耐电压 Dielectric Strength AC 1 min	标准长度 Standard length
规格 Spec	线数/线径	直径 DIA.	芯数 Cores	标称厚度 Nom. Thick	标称外径 Nom. Dia	铝箔 Al. Mylar	编织 Braid	标称厚度 Nom. Thick	标称外径 Nom. Dia	最大导体电阻 MAX Resistance At20℃	最小绝缘电阻 Min Insulation Resistance At20℃	耐电压 Dielectric Strength AC 1 min	标准长度 Standard length
AWG	No./mm	mm	No.	mm	mm	mm*mm	No./No. mm	mm	mm	Ω/km	MΩ/km	V	Ft(m)
28	7/0.127	0.38	3	0.25	0.88	A*B	16/4/0.12	0.80	4.20	223.75	10	1500	1000 (305)
			4				16/4/0.12		4.40
			5				16/5/0.12		4.60
			6				16/5/0.12		4.90
			7				16/5/0.12		4.90
			8				16/6/0.12		5.20				656 (200)
			9				16/6/0.12		5.50
			10				16/7/0.12		5.80
			11				16/7/0.12		5.90
			12				16/7/0.12		5.90
			13				16/8/0.12		6.20
			14				16/8/0.12		6.20
			15				16/9/0.12		6.40
			25				24/7/0.12		8.00				492 (150)
			37				24/8/0.12	1.00	8.80
			50				24/9/0.12	1.00	10.00
26	7/0.16	0.48	3	0.25	0.98	A*B	16/5/0.12	0.80	4.40	139.73	10	1500	1000 (305)
			4				16/5/0.12		4.70				1000 (305)
			5				16/5/0.12		5.00				656 (200)
			6				16/6/0.12		5.30
			7				16/6/0.12		5.30
			8				16/6/0.12		5.60
			9				16/6/0.12		6.00
			10				16/6/0.12		6.30
			11				16/6/0.12		6.40
			12				16/6/0.12		6.40
			13				16/7/0.12		6.70
			14				16/7/0.12		6.70
			15				16/7/0.12		7.00
			25				24/8/0.12		8.80				492 (150)
			37				24/9/0.12	1.00	9.70
			50				24/11/0.12	1.00	11.00
24	11/0.16	0.61	2	0.25	1.11	A*B	16/5/0.12	0.80	4.50	93.30	10	1500	1000 (305
			3				16/5/0.12		4.60
			4				16/5/0.12		4.90
			5				16/5/0.12		5.20				656 (200)
			6				16/6/0.12	0.90	5.80
			7				16/6/0.12		5.80
			8				16/6/0.12		6.10
			9				16/6/0.12		6.50
			10				16/6/0.12		6.90
			11				16/6/0.12		7.00
			12				16/6/0.12		7.00
			13				24/7/0.12		7.30
			14				24/7/0.12		7.30
			15				24/7/0.12		7.60
			25				24/9/0.12	1.00	9.40				492 (150)
			37				24/9/0.12		10.40
			50				24/11/0.12		11.90
22	17/0.16	0.76	2	0.25	1.26	A*B	16/5/0.12	0.90	5.00	55.00	10	1500	656 (200)
			3				16/5/0.12		5.30
			4				16/5/0.12		5.60
			5				16/5/0.12		6.00
			6				16/6/0.12	1.00	6.60
			7				16/6/0.12		6.60
			8				16/6/0.12		7.00
			9				16/6/0.12		7.50
			10				16/6/0.12		7.90
			11				16/7/0.12		8.00				492 (150)
			12				16/7/0.12		8.00
			13				24/7/0.12		8.40
			14				24/7/0.12		8.40
			15				24/7/0.12		8.80
			25				24/9/0.12	1.10	10.90
			37				24/9/0.12		12.00
			50				24/11/0.12		13.80

注：

①A*B：厚度*宽度（mm）

②厚度：0.025、0.035（mm）

③宽度：8、10、12、18、20……(mm)
