Temperature range: 105 ℃
Rated voltage: 600V
Test voltage: 2000V

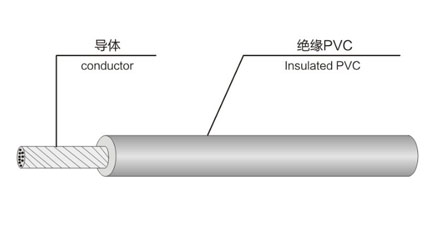

Conductor: tinned copper wire
Insulator: PVC
Color: white, blue, red, black, brown, yellow, green, yellow green
Scope of application: used for internal connecting wires of general electronic and electrical equipment
Wire specification
| 导体类型 | 导体 | 绝缘 | 最大导体电阻 | 最小绝缘电阻 | 耐电压 | 标准长度 | |||
| 线规 | 线数/线径 | 直径 | 标称厚度 | 标称外径 | |||||
| AWG | NO./mm | mm | mm | mm | Ω/km | MΩ/km | V | Ft(M) | |
| UL1015绞合导体 | 30 | 7/0.10 | 0.30 | 0.79 | 1.88 | 354.24 | 15 | 2000 | 2000（610） |
| 28 | 7/0.127 | 0.38 | 0.79 | 1.96 | 223.75 | ||||
| 26 | 7/0.16 | 0.48 | 0.79 | 2.06 | 139.73 | ||||
| 24 | 11/0.16 | 0.61 | 0.79 | 2.19 | 93.30 | ||||
| 22 | 17/0.16 | 0.76 | 0.79 | 2.34 | 55.00 | ||||
| 20 | 26/0.16 | 0.94 | 0.79 | 2.52 | 34.60 | ||||
| 18 | 41/0.16 | 1.18 | 0.79 | 2.76 | 21.80 | ||||
| 16 | 26/0.254 | 1.49 | 0.79 | 3.07 | 13.70 | 1000（305） | |||
| 14 | 41/0.254 | 1.88 | 0.79 | 3.46 | 8.62 | ||||
| 12 | 65/0.254 | 2.37 | 0.79 | 3.95 | 5.43 | ||||
| 10 | 105/0.254 | 3.40 | 0.79 | 4.98 | 3.41 | ||||
| 49/0.37 | 3.38 | 0.79 | 4.96 | 3.41 | |||||
| 8 | 168/0.254 | 4.31 | 1.15 | 6.60 | 2.16 | 656（200） | |||
| 6 | 124/0.37 | 5.43 | 1.52 | 8.50 | 1.39 | 328（100） | |||
| 4 | 196/0.37 | 6.78 | 1.52 | 9.80 | 0.88 | ||||
| 2 | 312/0.37 | 9.04 | 1.52 | 12.10 | 0.55 | 164（50） | |||
| 1 | 824/0.254 | 9.80 | 1.52 | 13.70 | 0.44 | ||||
| 1/0 | 1050/0.254 | 10.86 | 2.05 | 15.00 | 0.35 | ||||
| 2/0 | 616/0.37 | 12.30 | 2.05 | 16.80 | 0.28 | ||||
| 3/0 | 776/0.37 | 13.80 | 2.05 | 17.80 | 0.22 | ||||
| 4/0 | 980/0.37 | 15.40 | 2.05 | 19.60 | 0.17 | ||||
