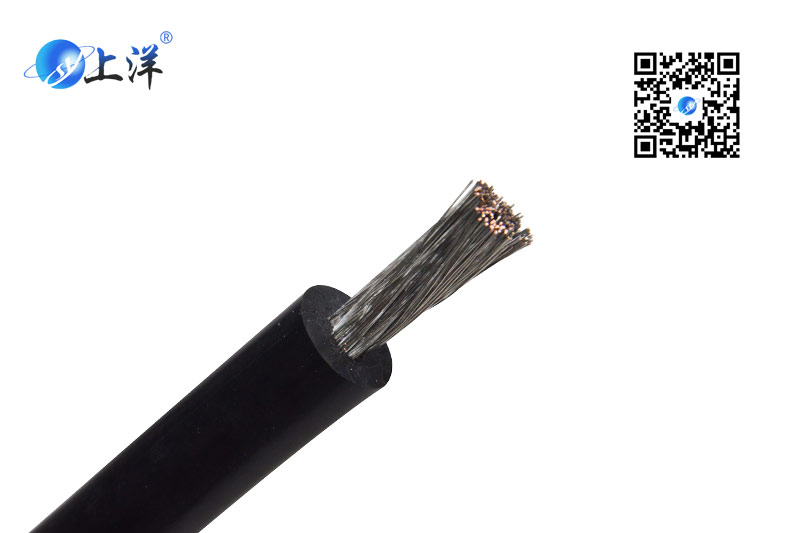

硅橡胶绝缘高压线5KV-50KV UL3239

Home > Products >

硅橡胶绝缘高压线5KV-50KV UL3239

Rated voltage: DC 5kV, 12kV, 20kV, 30KV, 40kV, 50kV

Temperature range: - 60 ℃ - + 200 ℃

Conductor: tinned copper wire stranded

Insulator: silicone rubber

Color: mainly red and black

Application: high voltage wire of electronic appliances and other instruments (such as high voltage connecting wire of TV, microwave oven, automobile, etc.)

Wire specification

线规（AWG）	导体结构根数/线径 mm	绝缘厚度 mm			电线外径 mm			包装长度 m
线规（AWG）	导体结构根数/线径 mm	5KV	12KV	20KV	5KV	12KV	20KV	包装长度 m
26	7/0.16	1.0	1.3	1.8	2.4	3.08	4.08	100
24	7/0.20	1.0	1.3	1.8	2.6	3.20	4.20	100
22	19/0.15	1.0	1.3	1.8	2.75	3.05	4.35	100
20	19/0.18	1.0	1.3	1.8	2.90	3.20	4.50	100
18	19/0.23	1.0	1.3	1.8	3.45	3.45	4.75	100
16	19/0.30	1.0	1.3	1.8	3.50	3.80	5.10	100
14	19/0.37	1.0	1.3	1.8	3.85	4.15	5.50	100

线规（AWG）	导体结构根数/线径 mm	绝缘厚度 mm			电线外径 mm			包装长度 m
线规（AWG）	导体结构根数/线径 mm	30KV	40KV	50KV	30KV	40KV	50KV	包装长度 m
26	7/0.16	3.2	4.2	5.5	6.88	8.90	11.50	100
24	7/0.20	3.2	4.2	5.5	7.00	9.00	11.61	100
22	19/0.15	3.2	4.2	5.5	7.15	9.15	11.75	100
20	19/0.18	3.2	4.2	5.5	7.30	9.30	11.90	100
18	19/0.23	3.2	4.2	5.5	7.90	9.55	12.20	100
16	19/0.30	3.2	4.2	5.5	7.90	9.90	12.50	100
14	19/0.37	3.2	4.2	5.5	8.30	10.30	12.85	100
