Temperature range: - 60 ℃ - + 200 ℃

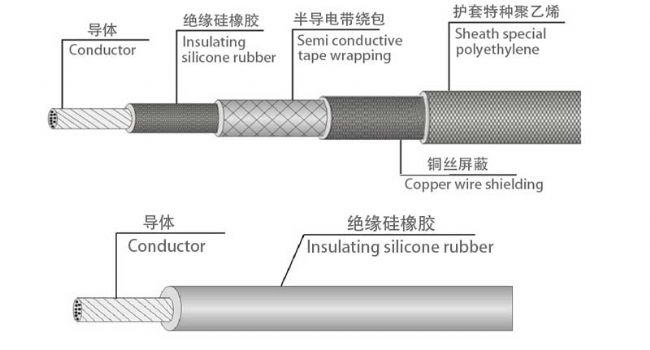

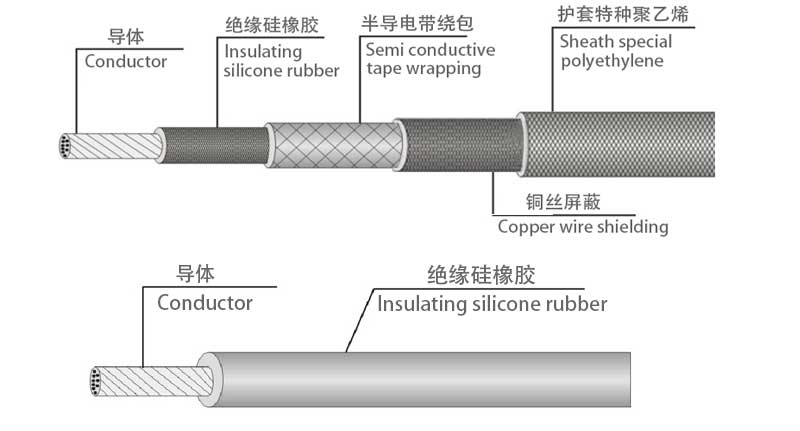

Conductor: tinned copper wire
Insulator: silicone rubber
Color: red, black
Voltage level: AC voltage 6kV 10KV
Scope of application: This product is used for connection of various mobile motors and electrical equipment.
Product features: excellent high pressure resistance and aging resistance, continuous working temperature: 200 ℃
Wire specification
|
型号 Type |
标称截面 mm² |
根数/线经 （No./mm） |
绝缘厚度mm |
外经mm | ||
|
6KV |
10KV |
6KV |
10KV | |||
|
JGG |
6 |
84/0.30 |
3.5 |
5.0 |
12.5 |
15.5 |
|
10 |
84/0.40 |
3.5 |
5.0 |
13.5 |
16.5 | |
|
16 |
126/0.40 |
3.5 |
5.0 |
15.0 |
18.0 | |
|
25 |
196/0.40 |
3.5 |
5.0 |
16.5 |
19.5 | |
|
35 |
276/0.40 |
3.5 |
5.0 |
18.0 |
21.0 | |
|
50 |
396/0.40 |
3.5 |
5.0 |
20.0 |
23.0 | |
|
70 |
360/0.50 |
3.5 |
5.0 |
21.5 |
24.5 | |
|
95 |
475/0.50 |
3.5 |
5.0 |
23.0 |
26,5 | |
|
120 |
608/0.50 |
4.0 |
5.0 |
25.0 |
27.5 | |
|
150 |
756/0.50 |
4.0 |
5.0 |
27.0 |
29.0 | |
|
185 |
925/0.50 |
5.0 |
5.5 |
31.0 |
33.0 | |
|
240 |
1221/0.50 |
5.5 |
6.0 |
35.0 |
37.0 | |
