Product executive standard: Q / irmv2-2008
Rated voltage: 600V
Temperature range: - 60 ~ + 200 ℃

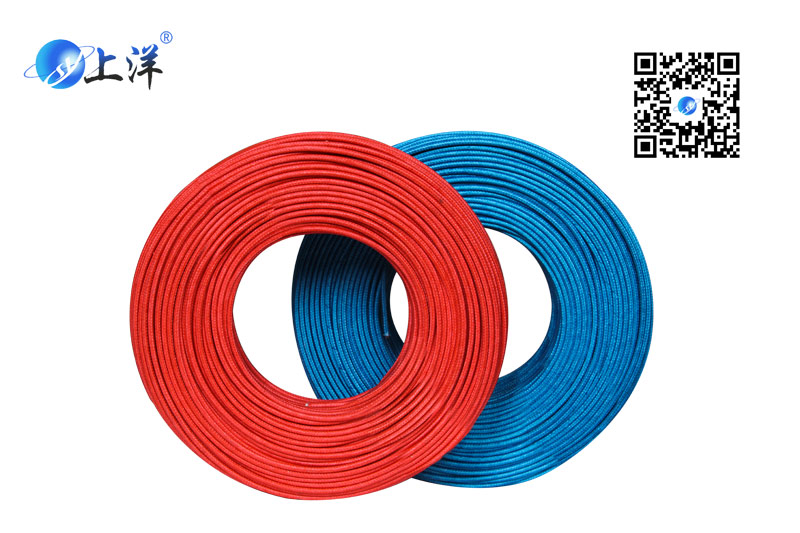

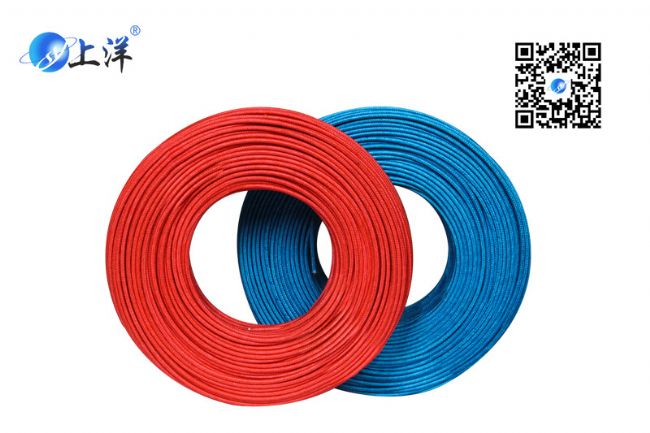

Conductor: tinned copper wire stranded
Insulation: silicone rubber + glass fiber braiding + gluing
Color: red, yellow, blue, white, black, yellow green, brown, green, etc.
Product performance: it has excellent high temperature and low temperature resistance, excellent electrical insulation performance, excellent chemical stability, and is very soft, aging resistant and long service life.
Product application: it is widely used in lighting fixtures, household appliances, electric appliances, instruments and meters, motor lead wires, electronics, lamps, gas appliances and other high-temperature environments.
Delivery length: short line sections not less than 10m are allowed, but the quantity shall not exceed 10% of the total delivery quantity.
Wire specification
|
标准截面 （mm2） |
导体结构 根数/单线直径 （mm） |
绝缘厚度 （mm） |
编织厚度 （mm） |
电线外径 (mm) |
导体电阻 （Ω/km） |
|
0.20 |
12/0.15 |
0.60 |
0.15 |
2.10 |
92 |
|
0.30 |
16/0.15 |
0.60 |
0.15 |
2.15 |
61.2 |
|
0.40 |
23/0.15 |
0.60 |
0.15 |
2.30 |
46 |
|
0.50 |
28/0.15 |
0.60 |
0.15 |
2.40 |
36.8 |
|
0.75 |
42/0.15 |
0.70 |
0.15 |
2.80 |
24.5 |
|
1.00 |
32/0.20 |
0.70 |
0.15 |
3.00 |
18.4 |
|
1.5 |
30/0.25 |
0.70 |
0.15 |
3.30 |
12.3 |
|
2.0 |
40/0.25 |
0.80 |
0.15 |
3.80 |
9.20 |
|
2.5 |
49/0.25 |
0.80 |
0.15 |
4.00 |
7.36 |
|
4.0 |
56/0.30 |
1.0 |
0.18 |
5.20 |
5.09 |
|
6.0 |
84/0.30 |
1.0 |
0.18 |
5.70 |
3.06 |
|
10 |
84/0.40 |
1.0 |
0.18 |
7.20 |
1.85 |
|
16 |
128/0.40 |
1.50 |
0.20 |
9.20 |
1.15 |
|
25 |
198/0.40 |
1.50 |
0.20 |
11.10 |
0.795 |
|
35 |
495/0.30 |
2.0 |
0.20 |
13.00 |
0.565 |
|
50 |
398/0.40 |
2.0 |
0.25 |
14.80 |
0.368 |
|
70 |
556/0.40 |
2.0 |
0.25 |
17.00 |
0.277 |
|
95 |
756/0.40 |
2.2 |
0.25 |
19.50 |
0.193 |
|
120 |
610/0.50 |
2.2 |
0.25 |
21.00 |
0.153 |
|
注：根据供需双方协议，可以生产其他规格的产品。 | |||||
