fslgwx250 AFR250.gif)
Executive standard: Q / irmv_ two thousand and eight
Rated voltage: 250V, 500V
Working temperature: - 65 ~ + 250 ℃, short-time temperature tolerance of 350 ℃

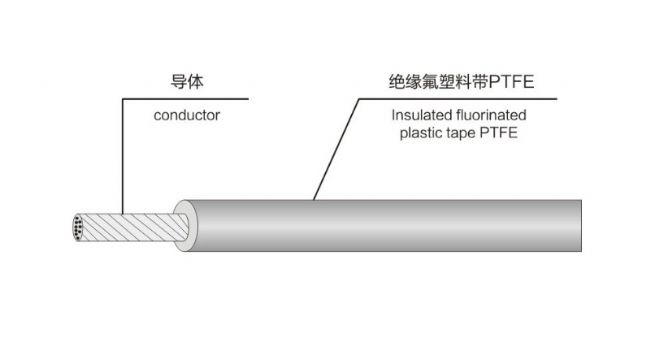

Conductor: stranded bare copper wire or stranded silver plated copper wire
Insulation: PTFE film wrapping + sintering
Color: red, yellow, blue, white, black, gray, brown, purple, green, blue, etc.
Product features: high temperature resistance, cold resistance, super softness, aging resistance, anti-interference, insulation easy to peel, conductor easy to weld. It has the characteristics of softness and small outer diameter, and is especially suitable for the environment with frequent bending.
Scope of application: it is mainly used for connection of internal electrical equipment and instrument lines of various aircraft, spaceships, armored combat vehicles, ships and other special purposes under high temperature environment.
Delivery length: short line sections not less than 10m are allowed, but the quantity shall not exceed 10% of the total delivery quantity.
Structural specification
| 标准截面（mm2） | 线芯结构（mm） | 最大外径 | ||
| 根数/单线直径 | 内导体绞合直径 | 电压250V | 电压500V | |
| 0.012 | 7*0.05 | 0.15 | 0.57 | 0.85 |
| 0.035 | 7*0.08 | 0.24 | 0.60 | 0.86 |
| 0.05 | 7*0.10 | 0.30 | 0.65 | 0.90 |
| 0.07 | 14*0.08 | 0.35 | 0.70 | 0.95 |
| 0.10 | 21*0.08 | 0.42 | 0.77 | 1.00 |
| 0.12 | 24*0.08 | 0.45 | 0.80 | 1.05 |
| 0.14 | 19*0.10 | 0.48 | 0.83 | 1.08 |
| 0.15 | 30*0.08 | 0.50 | 0.85 | 1.10 |
| 0.20 | 42*0.08 | 0.60 | 0.95 | 1.20 |
| 0.30 | 60*0.08 | 0.72 | 1.07 | 1.32 |
| 0.35 | 75*0.08 | 0.80 | 1.15 | 1.40 |
| 0.50 | 105*0.08 | 0.90 | 1.25 | 1.50 |
| 0.75 | 19*0.23 | 1.15 | 1.60 | 1.90 |
| 1.00 | 19*0.26 | 1.30 | 1.75 | 2.10 |
| 1.20 | 19*0.28 | 1.40 | 1.85 | 2.20 |
| 1.50 | 19*0.32 | 1.60 | 2.05 | 2.40 |
| 2.00 | 19*0.37 | 1.85 | 2.30 | 2.65 |
| 2.50 | 49*0.26 | 2.09 | 2.54 | 2.89 |
